Drain Cum Sampling Valve

DRG. No. H-4060 T

Specification & Features
1. Test pressure 10 lbs compressed air.
2. Screwed male/female ends to BSP.
3. All threads is done with standard dies/taps for high
quality finishing and universal.

Drain Cum Sampling Valve

DRG. No. H-5060 T

Specification & Features
1. Test pressure 10 lbs compressed air.
2. Screwed male/female ends to BSP.
3. All threads is done with standard dies/taps for high
quality finishing and universal convenience.

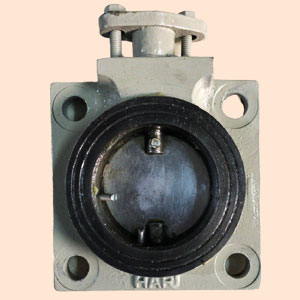

Radiator Valve

DRG. No. H-15080S

How to Operate
1. Loosen the two bolts and remove cap square head of spindle is then uncovered.
2. On the square head apply the wrench as follows.
   (a) To open the valve. Turn the wrench clockwise through a right angle.
   (b) To close the valve. Turn the wrench anticlockwise through a right angle. Towards the end of turning, hammer end of wrench with hand so that it closes with a jerk.
3. Disengage the wrench. Insert the cap. the cap will not fit unless the arrow on cap indicates the open or shut positon of the valve correctly.
4. Bolt the cap using 2 bolts.

Specification & Features
1. Streamlined butterfly minmises fractional resistance to fluid flow.
2. No linings to renew; yet leak proof.
3. Valve gland in either open or shut position preventing accidental leakage from top.
4. Open or shut state of valve indicated on cap which can not be wrongly put.

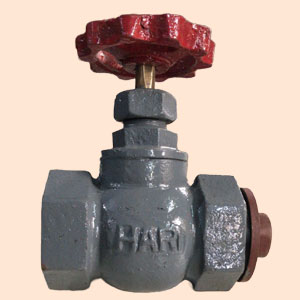

Globe Valve (Screwed Type)

DRG. No. HV101

Specification & Features
1. Each piece is tested on 30 lbs compressed air pressure.
2. Screwed female ends to BSP.
3. All threading is done with standard dies/taps for high quality finishing and universal convenience.
4. Sturdy hand wheel with easy grip for operation having open-close indication.
5. Teflon Seat to Check the leakage.
6. No leakage from bonnet nut in close/open positon.

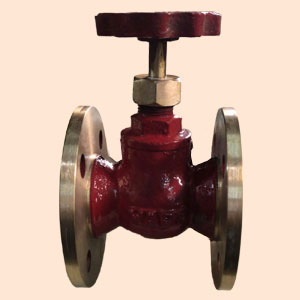

Globe Valve Flanged Ends C.I. & G.M.
